Fort Flagler (1897-1953) - An Endicott Period coastal fort established in 1897 and activated on 27 Jul 1899. Named in G.O. 138, 27 Jul 1899, after Brig. Gen. Daniel Webster Flagler, Chief of Ordnance, U.S. Army, who died on 29 March 1899. Located on Marrowstone Point, Jefferson County, Washington. The fort was closed 7 Jun 1953.

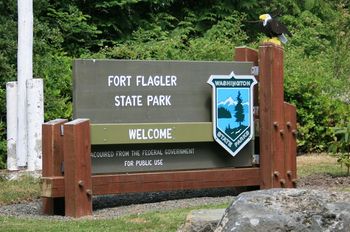

Fort Flagler Entrance Sign

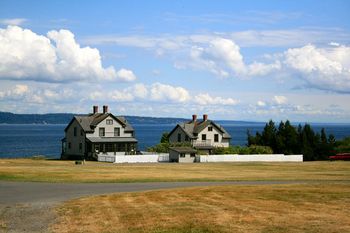

Fort Flagler NCO Quarters now Guest Quarters
Fort Flagler North Side Parade Ground and World War II Barracks
Fort Flagler South Side Parade Ground

Endicott Period

Part of the Harbor Defense of Puget Sound. Fort Flagler, along with Fort Worden and Fort Casey (1), guarded the entrance to Puget Sound. These posts, established in the late 1890's, became the first line of a fortification system designed to prevent a hostile fleet from reaching the Bremerton Naval Yard and the cities of Seattle, Tacoma and Everett.

Fort Flagler was originally constructed with three coastal gun batteries, Battery Revere, Battery Wilhelm and Battery Rawlins. The contract for the construction of these original gun batteries was awarded 22 Jun 1897, to the Pacific Bridge Company, Portland, Oregon. The batteries were completed in 1899 but not accepted for service until 17 Aug 1902. Two additional batteries, Battery Bankhead and Battery Lee were completed in 1900 and 1902 respectively and they were also accepted for service on 17 Aug 1902.

Initial construction of barracks and support facilities (12 buildings total) was complete in June 1899 and the Post was activated 27 Jul 1899. The first garrison was a detachment of 86 Enlisted men and three Officers from Battery B, 3rd U.S. Coastal Artillery, commanded by Capt. John D.C. Hoskins (Cullum 2255). Fort Flagler was made Headquarters of the Harbor Defense Command of Puget Sound because Fort Worden did not yet have permanent facilities complete. On 4 Sep 1904 the headquarters of the Harbor Defense Command of Puget Sound was transferred from Fort Flagler to Fort Worden.

Four additional batteries, Battery Grattan, Battery Calwell, Battery Downes and Battery Wansboro were completed in 1905-1906 and all were accepted for service on 23 Apr 1907. Total cost just to build the batteries themselves (excluding the guns and carriages) was about $ 460,000.

Fort Flagler Endicott Period Batteries (edit list)
Battery
Click on Battery links below
No. Caliber Type Mount Service Years Battery Cost Notes
Battery Bankhead 8 12" Mortar 1900-1902-1902-1942 $ 89,584 4 Mortars removed in 1918
Battery Wilhelm 2 12" Altered Gun Lift 1897-1899-1902-1942 $ 71,191
Battery Rawlins 2 10" Barbette 1897-1899-1902-1918 $ 60,000
Battery Revere 2 10" Barbette 1897-1899-1902-1941 $ 60,000 Guns to Canada
Battery Calwell 4 6" Disappearing 1903-1905-1907-1917 $ 89,500 Guns to France
Battery Grattan 2 6" Disappearing 1904-1906-1907-1917 $ 48,000 Guns to France
Battery Lee 2 5" Balanced Pillar Mount 1899-1900-1902-1918 $ 15,500 Guns to Grays Harbor
Battery Downes 2 3" Pedestal Mount 1904-1906-1907-1946 $ 12,000
Battery Wansboro 2 3" Pedestal Mount 1903-1905-1907-1946 $ 14,000 Guns Replaced in 1960
Source: CDSG

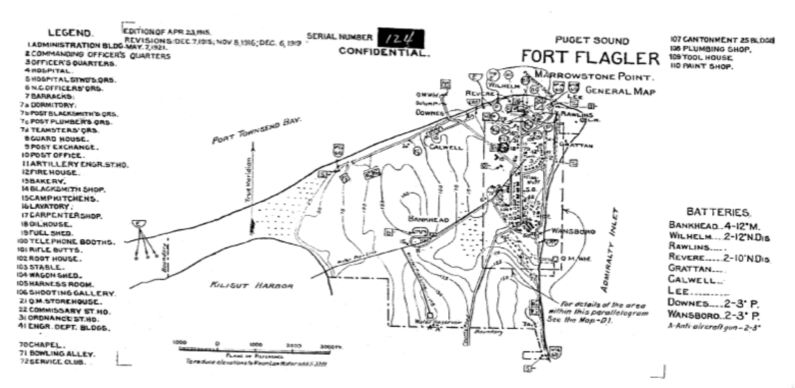

Fort Flagler Map


World War I

During World War I eight of the fort's guns were sent to Europe and converted to field or railway guns and 2 were sent to Canada. After World War I Fort Flagler was used as a ROTC training center.

World War II

During World War II and the Korean War the fort was used for training in amphibious warfare.

Fort Flagler World War II Batteries (edit list)
Battery
Click on Battery links below
No. Caliber Type Mount Service Years Battery Cost Notes
Battery AMTB - Marrowstone Point 2
2
90mm
90mm
Fixed Pedestal Mounts
Mobile Mounts
1943-1943-1944-1946 $ 8,842
Battery Rawlins 3 3" AA 1942-1943-1944-1946 $ 11,000
Source: CDSG

Cold War

At the end of the Korean War Fort Flagler was deactivated, 7 Jun 1953. The property was purchased by the State of Washington as a state park in 1955.

Current Status

A part of Fort Flagler State Park, Jefferson County, Washington. Period guns and carriages installed in Battery Wansboro.


Location: Fort Flagler State Park, Jefferson County, Washington.

Maps & Images

Lat: 48.09767 Long: -122.69647

Recent Blog Posts:

Sources:

Links:

Visited: 18 Jun 2009, 19 Jul 2008
