New York ARTCC (1963-Active) - One of 22 Federal Aviation Administration (FAA) Air Route Traffic Control Centers (ARTCC)s in the United States. Established in 1963 near Ronkonkoma, Suffolk County, New York. Assigned an FAA ID of ZNY. Active FAA Air Traffic Control Center. Also known as New York Center.

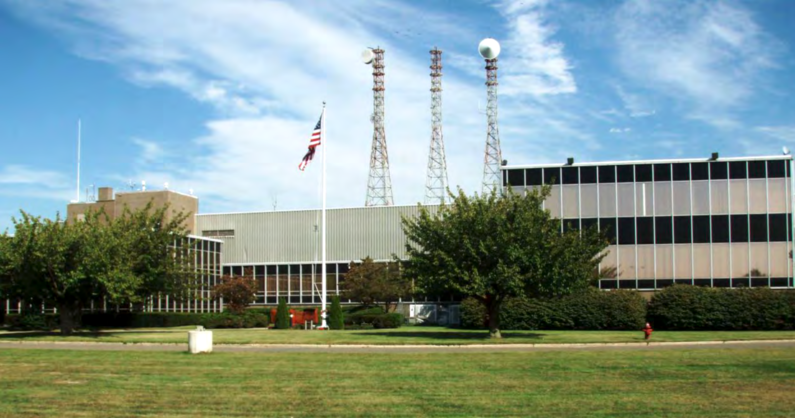

New York ARTCC building at 4205 Johnson Ave, Ronkonkoma, NY.

History

The New York ARTCC (ZNY) was first established on 11 Jan 1956 in Hanger 11 at New York International Airport (aka Idlewild and later JFK). In 1963 the New York ARTCC was moved into the newly constructed Federal Aviation Administration (FAA) ARTCC Building at MacArthur Field in Islip, NY. The New York ARTCC was the 19th of the standardized ARTCC buildings put into operation under the FAA's modernization program started in 1960.

The new facility was commissioned on 21 Jul 1963 and formally dedicated 7-8 Sept 1963. Initial equipment included the IBM 1410 solid-state computer, a 300 System voice switch, and a Raytheon Bright display system for displaying flight progress at controller positions.

Initially, the 20 ARTCCs in the lower 48 States were equipped with IBM 9020 computers to automate some of the ARTCC functions. In 1988 the IBM 3083 computer system known as "Host" replaced the old IBM 9020s in these ARTCCs. On 14 Jun 2012, the FAA decommissioned the 4-decades-old En Route Host computer system at the Seattle and Salt Lake City ARTCCs and replaced the system with the new En Route Automation Modernization (ERAM) system. As of 27 Mar 2015, all 20 of the lower 48 United States ARTCCs had converted to the ERAM system as had the FAA Academy in Oklahoma City, Oklahoma.

ERAM technology is the heart of the Next Generation Air Transportation System (NextGen) and the pulse of the National Airspace System (NAS), helping to advance the transition from a ground-based system of air traffic control to a satellite-based system of traffic management. ERAM can process data from 64 radars versus the 24 radar processing with the legacy HOST system.

Operation

The Federal Aviation Administration (FAA) system of 24 FAA Area Control Centers, 20 in the lower 48 United States, one in Alaska, one in Hawaii, one in Puerto Rica and one in Guam. The system operates with radar data provided by FAA radar sites, DoD radar sites, and other federal agency radar sites. These centers provide en route and oceanic services to private, commercial, and military aircraft overflying their respective control areas. As aircraft enter or exit from one control area to the next, responsibility for the aircraft is transferred to the gaining ARTCC. Voice communication between aircraft and the ARTCCs is supported by a network of ground-air radio sites often co-located with the radar sites.

The gathering of radar, beacon and other sensor data are now largely automated and continuous, but the actions necessary to control the airspace are conversational and require some 14,000 FAA air traffic controllers talking directly to pilots in the air and on the ground at terminals. This number does not include military air traffic controllers.

New York ARTCC (ZNY)
Total Operations (aircraft handled) 2,684,769 FY2016
Total Operations (aircraft handled) 2,706,705 FY2017
Operations Rank 2/24 FY2017
En-Route Air Traffic Controllers 330 a/o 17 Sep 2016
Airspace Area (sq miles) 135,000


New York ARTCC Controlled Radar Sites (edit list)
FAA JSS NORAD Site St_ Equip_ Status Origin GPS ARTCC Notes
ZQIE J-51 Z-063 Gibbsboro NJ ARSR-4
ATCBI-6M
Active Gibbsboro AFS 39.82472,
-74.95417
ZNY
ZQVH J-52 Z-315 Riverhead NY ARSR-4
ATCBI-6M
Active 40.87861,
-72.687222
ZNY
ZDSV J-56 Z-309 Dansville NY CARSR
ATCBI-6
Active 42.63833,
-77.652778
ZNY
ZQRC Z-030 Benton PA CARSR
ATCBI-6
Active Benton AFS 41.35738,
-76.29296
ZNY
QDP J-61 Trevose PA ARSR-60
Unk
Closed
1998
40.13417,
-74.98694
ZNY Gone

Note: This list includes only long-range FAA Radar Sites listed with this ARTCC as the Overlying Enroute Center. Adjacent ARTCC sector sites are not shown and short-range terminal radar sites are not shown.

Current Status

Active FAA facility located at 4205 Johnson Ave, Ronkonkoma, NY. The New York Center covers a part of the FAA's Eastern service area.

Location: 4205 Johnson Ave, Ronkonkoma, NY.

Maps & Images

Lat: 40.78431 Long: -73.09686


GPS Locations:

See Also:

Sources:

  • Administrator's Fact Book, Federal Aviation Administration, May 2019, archived 4 Jun 2019, Pdf
  • 2017-2026 Air Traffic Controller Workforce Plan, Federal Aviation Administration, 2017, archived 5 Jun 2019, Pdf
  • Air Traffic by the Numbers, Federal Aviation Administration, 2018, archived 5 Jun 2019, Pdf
  • Computer system to Improve air safety unveiled in LA, The Napa Valley Register (Napa, California), 11 Mar 1988, page 20, archived 7 Jul 2019.
  • Kyle, Richard E., New Concept in Air Traffic Control: The equipment and procedures incorporated into the FAA's busiest Center can be the steppingstone to greater safety in all terminal areas, Flying, Vol 75, No. 6, Dec 1963, page 44-45, 85-86.
