Campion Air Force Station (1952-1983) - A Cold War U.S. Air Force Station, part of the Alaska AC&W Radar Network. Named for 2nd Lt. Alan J. Campion who was killed in an F-94 aircraft accident 26 Nov 1950. Located along the Yukon River near the town of Galena, Alaska. Initially functioned as a Ground Control Intercept (GCI) site, with a Permanent System ID of F-08. Later redesignated a surveillance site feeding track data to a manual Direction Center. Closed after the establishment of the Elmendorf ROCC in 1983 and the establishment of the Galena Long Range Radar Site at the nearby Galena AFB instead of Campion AFS.

Campion Air Force Station circa 1961.

History

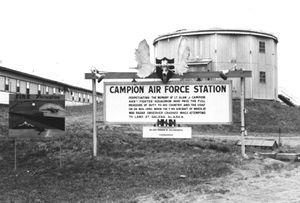

Campion AFS Sign Commemorating Lt. Allen J. Campion (Major Roger W. Ellsworth identified as Current Commander).

Construction began 25 June 1950 and was completed in 1952 by the Morrison-Knudsen Company under a $2,238,000 contract. The site became operational 1 Jul 1952 and was known as Galena 2 or the 142d AC&W Squadron. The site was formally dedicated on 10 Apr 1954 as Campion Air Force Station.

The site initially functioned as a "Lashup" Ground Control Intercept (GCI) site using leftover WWII era radar equipment while awaiting more modern equipment. In 1953, Campion was changed to an air defense direction center and back to a GCI under NORAD on 13 Jun 1973. A 1970s organization chart shows Campion as a NORAD NCC with the Kotzebue Direction Center reporting to it along with input from the Point Barrow Dew Line facility. In 1973 Campion was realigned under the Murphy Dome NORAD Control Center. This status continued until the site deactivated in 1983.

The site was first established by a detachment from the 532nd ACWS. Shortly after they were replaced by Det. F-8 of the 143rd ACWS attached to the 160th ACWG, an ANG unit. The 143rd was replaced by the 142nd ACWS, also assigned to the 160th. In early 1953, the Air Force’s 743rd ACWS, part of the 548th ACWG, replaced the 160th ANG unit. The 743rd AC&W Squadron operated Campion AFS until it closed.

Lashup equipment at the site included a CPS-5 search radar. There is some conflict between sources about early equipment at the site but a photograph clearly shows a CPS-5 on a temperate tower circa 1954. An FPS-8 search radar was added in mid-1955. At some point, a FPS-3 search radar and one FPS-6 height-finder radar was added. The FPS-3 radar was later upgraded to a FPS-20 search radar and a FPS-90 height-finder radar was added. Later the FPS-20 was upgraded to a FPS-93A search radar. Later pictures of the site show three radomes presumably with the FPS-20 search radar in the center next to operations flanked by two height-finder radars (one FPS-6 and one FPS-90).

Aircraft track data from these radars was manually plotted on plotting boards and passed to the Manual Direction Center on voice circuits. In 1965 the FYQ-9 Semiautomatic Data Processing and Display System was implemented on Alaska AC&W radar sites automating the passing of track data to the direction centers. The result was reduced manpower requirements and increased efficiency.

Further reductions came on 1 Oct 1977 when the Alaska Air Command (ACC) contracted with RCA Services for site support services. This was a part of an Air Force effort to reduce remote tours and some 76 military positions were deleted at Campion. The remaining military personnel were primarily in operations.

JSS common digitizers were installed on the AC&W radars sites, including Campion, by 1982. This upgrade enabled transmission of radar track data via satellite to the new Elmendorf JSS Regional Operations Control Center (ROCC) near Anchorage. The Elmendorf ROCC was activated on 14 Jun 1983 and that event triggered a series of events that included the closure of the AC&W sites, the disbandment of the AC&W Squadrons, and the creation of Long-Range Radar Sites (LRRS) with full contractor operation and maintenance and new FPS-117 3D radars.

The nearby Galena Long-Range Radar Site was selected as the site of an FPS-117 Minimally Attended Radar (MAR) and Campion AFS was deactivated on 1 Nov l983 and the facility was later demolished in 1986.

Campion Air Force Station in the Winter.


Physical Plant

The Campion AFS was not a split site and everything was at a common location. Campion AFS had the standard building schedule, with twenty-one wood-frame buildings, most connected by covered walkways. Three radar domes eventually replaced the one original CPS-5 radar on a temperate tower (no radome). A central power plant in building 105 served the whole site. Radar operations were located in building 101 next to the search radar tower in building 102. A gym/bowling alley building was added in the 1960s. It was possible to wear summer uniforms year-round if one did not go outside. No family housing was provided as this was considered a remote unaccompanied tour, 15 months in the beginning but later changed to 1 year.

The station was resupplied annually by supply barges from 1951 until its closure. A barge landing-site for off-loading POL and other supplies was located about 1.5 miles northwest of the site, near the mouth of Beaver Creek. A 7,250-foot gravel runway was built as an auxiliary runway to the Galena AFB and was to serve Campion AFS as well. The expansion plans were canceled and the field was deactivated in 1954. The annual resupply effort was originally known as Mona Lisa, and in 1967 the name was changed to Cool Barge. See the vicinity map below for the Barge landing site on the Yukon River. Campion AFS was demolished by the US Air Force in 1986.

Campion Air Force Station Composite Plan.


Campion AFS Structures (edit list)
Number Building Area Currently
Exists
Notes
 ?? CPS-5 Temperate Tower Operations No
10 Unk Cantonment No
11 Unk Cantonment No
1?? Unknown Radio No May have been original Receiver Bldg.
101 Operations Bldg Operations No
102 Search Radar Tower Operations No
103 Motor Pool Cantonment No
104 Heavy Equipment Cantonment No
105 Power Production Cantonment No
106 Paint Storage Cantonment No
107 Commissary Food Storage Cantonment No
108 Unit Supply Cantonment No
109 BX/Chapel/Rec Hall Cantonment No
110 Dining Hall Cantonment No
111A NCO Quarters (NCOQ) Cantonment No
111B Airman Quarters (BAQ) Cantonment No
112 Officer Quarters (BOQ) Cantonment No
113 HQ/Admin/Medical Cantonment No
115 Well #2 Cantonment No
117 POL Storage Cantonment No
118 White Alice Terminal Operations No
119 Height-Finder Radar Tower Operations No
119 Height-Finder Radar Tower Operations No
121 Radio Transmitter Bldg Radio No
123 Civil Engineering Bldg Cantonment No
124 Civil Engineering Bldg Cantonment No
129 Civil Engineering Bldg Cantonment No
130 Hobby Shop Cantonment No
131 Height-Finder Radar Tower Operations No
132 NCO Club Cantonment No
134 Gym & Bowling Alley Cantonment No


Communications

Separate radio facilities housed the radio equipment for communicating with aircraft. Building 121 is identified as being the Ground-to-Air transmitter site but the Air-to-Ground Receiver site building is not identified. It may be that the Transmitter and Receiver sites were consolidated into the Transmitter site building as was done on many AC&W sites. The building identified as 1?? - Unknown may have been the original Receiver building

Campion White Alice Communications Site

After HF radio systems proved inadequate for command and control communications, the Air Force implemented the White Alice Communications System. This was a system of tropospheric scatter and microwave radio relay sites constructed during the mid-1950s to provide reliable communications to Alaska Air Command (AAC) AC&W system. Building 118 is identified as the White Alice terminal at Campion AFS.

Campion was tied into the new WACS system via the Kalakaket Creek White Alice site located south of Galena in 1958. Building 118 is identified as the White Alice terminal at Campion AFS.

The specific links from Campion (CMN) as/of July 1977 were:

  • 501 to Galena (GAL)
  • 74B Microwave to Kalakaket Creek (KKK)

After the inactivation of WACS in 1978, Campion’s communications were switched to the nearby ALASCOM commercial terminal.


Campion AFS Major Equipment List
Search Radar HF Radar Data Systems Comm
Unit Designations
  • Det. of the 532nd ACWS
  • Det. F-8 of the 143rd ACWS attached to the 160th ACWG, ANG
  • 142nd ACWS, assigned to the 160th ACWG, ANG
  • early 1953, 743rd ACWS, part of the 548th ACWG, USAF
  • 743rd Aircraft Control & Warning (AC&W) Squadron (1953-1985)
Campion AFS Partial Commanders List (edit list)
Assumed Relieved Rank Name Cullum Notes
?? Major Ellsworth, Roger W. N/A
1954 Major Brice, James O. N/A
1954 Lt Colonel Cochran, Warton N/A
1972 1973 Lt Colonel Allen, Charles N/A
1973 1974 Lt Colonel Richards, Eldon C. N/A
1974-08 1975-07 Major Shanks, Jesse W. N/A
1976-07 1977-07 Major Davis, William E. N/A
1978 1979 Major Furr, Matthew N/A
1980-07 1981-07 Major Crawford, Robert H. N/A
1983 Close Captain Hubertus, Richard J. N/A

Current Status

All of the of the old AC&W radar site buildings have been demolished. The site has also had an environmental remediation project that has further erased signs of the old AC&W site. Now reportedly being used as dump site for the town of Galena.

Campion Air Force Station and Galena Airport Vicinity Map (annotated).

Location: Near the Town of Galena in the Yukon–Koyukuk Census Area, Alaska.

Maps & Images

Lat: 64.70583 Long: -156.72806
