Battery 155 - Port Aransas (1942-1944) - Battery 155 - Port Aransas was a temporary, World War II, 155mm coastal gun battery on Panama mounts. Located on Port Aransas Military Reservation, Nueces County, Texas. Battery construction started 26 Nov 1942, was completed 13 Dec 1942 and transferred to the Coast Artillery for use 11 Nov 1943 at a cost of $ 24,726.42. Deactivated in 1944.

Battery 155 - Port Aransas, Gun Emplacement #2
Battery 155- Port Aransas, Gun Emplacement #1 Masonry Work
Battery 155 - Port Aransas, Gun Emplacement #1

World War II

Part of the Temporary Harbor Defense of Aransas Pass, Texas.

Battery 155 - Port Aransas Emplacement #2 Mound

Originally built as a temporary World War II coastal gun battery with two 155mm M1918 rapid fire guns mounted on M1917 Mobile Carriages emplaced on circular Panama mounts.

The 155mm guns replaced a temporary 105mm howitzer field artillery battery on 11 Apr 1942. The two Panama mounts were placed on mounds that were stabilized with gunite. The mounds raised the gun trunion elevation to 37' 6". Both of the Panama mounts were of the 360 degree variety. Ramps were provided to allow positioning of the guns on the Panama mounts. Five splinter proof magazines were provided along with a 23' by 17' plotting room.

The Temporary Harbor Defense of Aransas Pass was deactivated on 1 Jul 1944 and on 3 Jul 1944 the guns were removed. The troops departed on 4 Jul 1944.

Battery 155 - Port Aransas Armament (edit list)
Empl
No
Caliber
Type
Barrel
Length
Model Serial
No
Manufacturer Carriage Service
Dates
Notes
1 155mm Rifle 240" M1918 M1 1033 ? Mobile, M1918, #14, ? 1942-1944
2 155mm Rifle 240" M1918 M1 1038 ? Mobile, M1918, #30, ? 1942-1944
Source: RCW Form 1, January 1945, CDSG, Berhow, Mark A. ed, American Seacoast Defenses: A Reference Guide, 2nd Edition, CDSG Press, McLean, VA, 2004, ISBN 0-9748167-0-1, pages 190-191

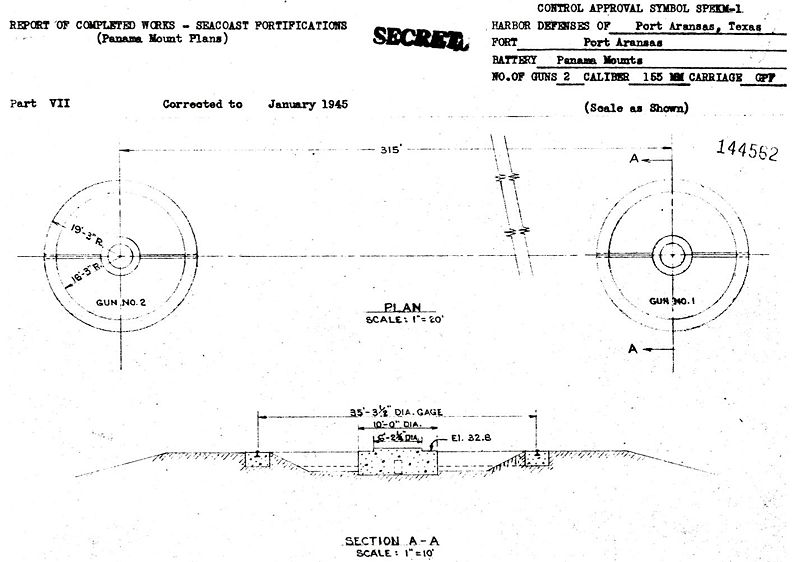

Battery 155 - Port Aransas Plan


Current Status

The battery appears to be on the grounds of the University of Texas, Marine Science Institute and adjacent to Nueces County Park. No period guns or mounts in place but the Panama mounts are visible.


Location: University of Texas, Marine Science Institute adjacent to Nueces County Park., Nueces County, Texas

Maps & Images

Lat: 27.834318 Long: -97.053464

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: 37.6'

Sources:

  • Gaines, William, Temporary Harbor Defenses in the Southern Defense Command: 1942-1944, The Coast Defense Journal, Vol 16 Issue 1, page 4-38
