FPS-20 Search Radar
Element
Value
Notes
Nomenclature
FPS-20
Origins
FPS-3
Variants
FPS-20A
Manufacturer
Bendix Corporation
Type
Search
Number Made
200+
IEEE Band
L
Frequency
1250-1350 MHz
PRF
360
Adjustable
Pulse Width
2 us
Rotation Speed
3.3, 5, 10 rpm
Selected
Power
750 kw x 2
Klystron
Range
220 nmi
Long Range
Altitude
65k
Introduced
1956
FPS-20 on Temperate Tower
Context See Also:
Sources:
Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program , USAF Hq Air Combat Command, 1997, 192 pages, Pdf
MIL-HDBK-162A, 15 Dec 1965. Links:
Related: Aiken Air Force Station , Ajo Air Force Station , Almaden Air Force Station , Amarillo Air Force Base Radar Site , Antigo Air Force Station , Apple Valley FAA Radar Site , Arlington FAA Radar Site , Arlington Heights Air Force Station , Ashburn FAA Radar Site , Ashton FAA Radar Site , Baldy Hughes Air Station , Battle Mountain FAA Radar Site , Beausejour Air Station , Bedford Air Force Station , Bellefontaine Air Force Station , Belleville Air Force Station , Benson FAA Radar Site , Benton Air Force Station , Bethel Air Force Station , Binns Hall FAA Radar Site , Blaine Air Force Station , Boron Air Force Station , Brecksville FAA Radar Site , Byhalia FAA Radar Site , CARSR , CFS Beaverlodge , CFS Gander , Calumet Air Force Station , Campion Air Force Station , Canton FAA Radar Site , Cape Lisburne Air Force Station , Cape Newenham Air Force Station , Cape Romanzof Air Force Station , Cartwright Air Station , Cascade FAA Radar Site , Cedar City FAA Radar Site , Chandler Air Force Station , Charleston Air Force Station , Citronelle FAA Radar Site , Claysburg Air Force Station , Clearfield FAA Radar Site , Cold Bay Air Force Station , Colville Air Force Station , Condon Air Force Station , Coopersville FAA Radar Site , Cross City Air Force Station , Cummington FAA Radar Site , Curlew Air Force Station , Custer Air Force Station , Cut Bank Air Force Station , Dansville FAA Radar Site , Dauphin Island Air Force Station , Denver FAA Radar Site , Eagle Pass Air Force Station , Ellington Air Force Base Radar Site , Ellsworth Air Force Station , England Air Force Base Radar Site , Experimental SAGE Subsector , Fallon Air Force Station , Finland Air Force Station , Finley Air Force Station , Fire Island Air Force Station , Fort Lawton Air Force Station , Fort Yukon Air Force Station , Fortuna Air Force Station , Fossil FAA Radar Site , Francis Peak FAA Radar Site , Gallup FAA Radar Site , Garden City FAA Radar Site , Gettysburg Air Force Station , Grand Junction FAA Radar Site , Grand Rapids Air Force Station , Guthrie Air Force Station , Haleyville FAA Radar Site , Hanna City Air Force Station , Hanna City FAA Radar Site , Hopedale Air Station , Horicon FAA Radar Site , Houma Air Force Station , Hutchinson Air Force Station , Indian Mountain Air Force Station , Indianapolis FAA Radar Site , Joelton Air Force Station , Joliet FAA Radar Site , Kaala Air Force Station , Kamloops Air Station , Keller FAA Radar Site , Keno Air Force Station , Key West NAS Radar Site , Killeen Air Force Station , King Salmon Air Force Station , Kirksville Air Force Station , Klamath Air Force Station , Kokee Air Force Station , Kotzebue Air Force Station , La Grange FAA Radar Site , Lackland Air Force Base Radar Site , Las Cruces Air Force Station , Las Vegas Air Force Station , Lincolnton FAA Radar Site , London FAA Radar Site , Lovell FAA Radar Site , Lusk FAA Radar Site , Lynch FAA Radar Site , MacDill Air Force Base Radar Site , Madera Air Force Station , Maiden FAA Radar Site , Makah Air Force Station , Malmstrom Air Force Base Radar Site , Marietta Air Force Station , Mather Air Force Base Radar Site , Melville Air Station , Mesa Rica FAA Radar Site , Mica Peak Air Force Station , Miles City Air Force Station , Minot Air Force Station , Montauk Air Force Station , Montgomery FAA Radar Site , Moriarty Air Force Station , Mount Lemmon Air Force Station , Murphy Dome Air Force Station , Naselle Air Force Station , Newport FAA Radar Site , North Charleston Air Force Station , North Platte FAA Radar Site , Northeast Cape Air Force Station , Oakdale Air Force Station , Odessa FAA Radar Site , Ohlson Mountain Air Force Station , Oklahoma City Air Force Station , Olathe Air Force Station , Omaha Air Force Station , Oskaloosa FAA Radar Site , Othello Air Force Station , Palermo Air Force Station , Patrick Air Force Base Radar Site , Perrin Air Force Station , Phoenix FAA Radar Site , Point Arena Air Force Station , Port Austin Air Force Station , RCAF Station Edgar , RCAF Station Falconbridge , RCAF Station Lac St. Denis , RCAF Station Saint Margarets , RCAF Station Senneterre , RCAF Station Sydney , Red Bluff Air Force Station , Rock Springs FAA Radar Site , Rogers FAA Radar Site , Russellville FAA Radar Site , SAGE System , Saglek Air Station , Saint Albans Air Force Station , San Nicolas Island USN Radar Site , San Pedro Hill Air Force Station , Saratoga Springs Air Force Station , Sault Ste Marie Air Force Station , Savannah Air Force Station , Selfridge Air Force Base Radar Site , Seligman FAA Radar Site , Silver City FAA Radar Site , Snow Mountain Air Force Station , Sparrevohn Air Force Station , St. Anthony Air Station , St. Louis FAA Radar Site , Stephenville Air Station , Sweetwater Air Force Station , Tatalina Air Force Station , Texarkana Air Force Station , Texarkana FAA Radar Site , Texas Tower 2 , The Plains FAA Radar Site , Tin City Air Force Station , Trinidad FAA Radar Site , Tyler FAA Radar Site , Tyndall Air Force Base Radar Site , US Radar Sets , Unalakleet Air Force Station , Wadena Air Force Station , Watertown Air Force Station , Winnemucca Air Force Station , West Mesa Air Force Station ,

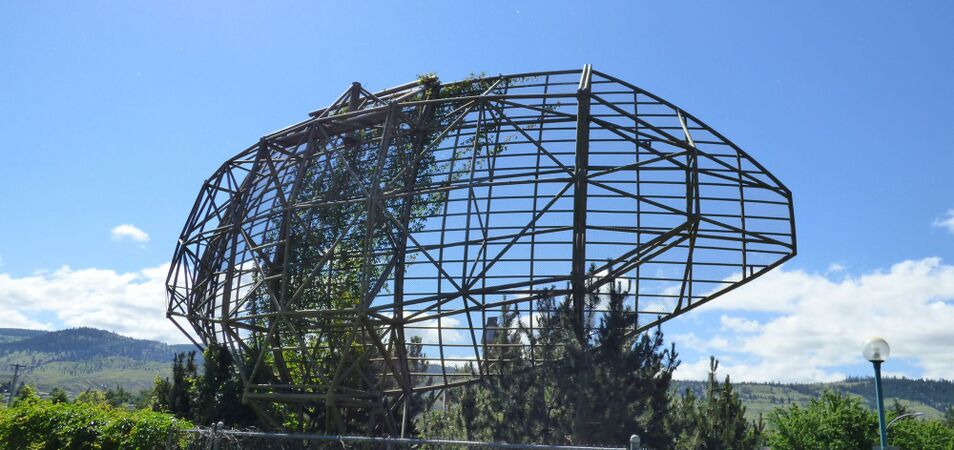

Kamloops AFS FPS-20 Search Radar Antenna, now in a City Park.
