Lewistown Air Force Station (1958-1971) - A Cold War Air Force Radar Station first established in 1958 on Judith Peak near Hilger, Fergus County, Montana. The cantonment area and housing areas were located below the operations area, near the ghost town of Maiden, Montana. Named Lewistown Air Force Station after the nearby town of Lewistown. Initially assigned a USAF Facility ID of NECU, a Permanent ID of TM-178 and later a Sage ID of Z-178. Inactivated by the Air Force in 1971.

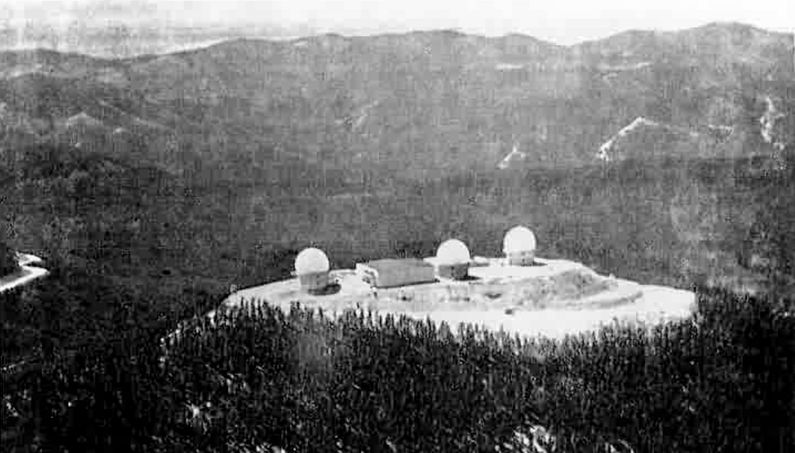

Lewistown Air Force Station Upper Site.

History

Established in 1958 as Lewistown Air Force Station manned by the 694th AC&W Squadron. Construction was completed in April 1959 and the site went operational on 15 Feb 1960 as a manual AC&W site. The station initially had both a Ground-Control Intercept (GCI) and an early warning mission. The early warning mission involved tracking and identifying all aircraft entering their airspace while the GCI mission involved guiding Air Force interceptors to any identified enemy aircraft. Controllers at the station vectored fighter aircraft at the correct course and speed to intercept enemy aircraft using voice commands via ground-to-air radio.

Initial equipment included the FPS-3A search radar and one FPS-6A height-finder radar. A FPS-90 height-finder radar was added in 1961.

SAGE System Transition

The transition of the manual GCI system to the automated SAGE system began with the installation of the FST-2 coordinate data transmitter and search radar upgrades. The FST-2 equipment digitized the radar returns and transmitted the digital returns to the SAGE direction center. Under the SAGE System, interceptor aircraft were directed to their targets by the direction center computers and controllers, greatly reducing the need for local controllers and equipment at every radar station.

The FST-2 was a very large digital system using vacuum tube technology. Over 6900 vacuum tubes were used in each FST-2 requiring 21 air-conditioned cabinets, 40 tons of air conditioning, 43.5 kva of prime power, and usually a large new addition to the operations building. The FST-2B modification added two more cabinets but with newer solid-state (transistor) technology to process coded responses from aircraft transponders. The FST-2 at Lewiston AFS was located on the upper site adjacent to the operations area.

SAGE System Operation

Former Malmstrom SAGE Direction Center DC-20.
Miles City SAGE Direction Centers & Sectors
Assigned Direction Center Sector
1 Jul 1960 - 1 Apr 1966 Malmstrom SAGE Direction Center DC-20 Great Falls Air Defense Sector
1 Apr 1966 - 9 Nov 1969 Malmstrom SAGE Direction Center DC-20 28th Air Division
9 Nov 1969 - 30 Jun 1971 Malmstrom SAGE Direction Center DC-20 24th Air Division

The site began operation as a SAGE site on 1 Mar 1961 feeding the Malmstrom SAGE Direction Center DC-20 at Malmstrom AFB. The FPS-3A radar was replaced in 1963 with a FPS-66 search radar that was upgraded to a FPS-66A configuration in 1966. The FPS-90 height-finder was removed from service in 1968 leaving the site with a single height-finder.

Closure

Lewistown AFS was officially Inactivated on 1 Jul 1971 as recorded by SO GA-29, DAF, Wash DC, 31 Aug 1971, para 2.

Physical Plant

The physical plant of the site was divided into an upper radar/operations site on Judith Peak, a separate GATR radio site on Red Mountain, and a lower site with the cantonment area and two housing areas. A modern grade school built by USAF, operated by the Lewiston School District and staffed by three teachers was built just up the road from the lower site. This school served the Air Force dependents and local children as well. Dependent high school students were transported to Lewiston high schools.

Lewistown AFS Lower Site Composite Plan
Upper site Radar and Operations Area.

The upper radar/operations site housed the operations building, communications center, the radar towers, and the backup generators. The lower cantonment area housed the support functions including the enlisted barracks, the bachelor officer's quarters, the orderly room, the mailroom the dining hall, the motor pool, and other support activities. The dining hall seated 65 personnel providing four meals a day, breakfast, lunch, dinner, and a midnight meal for shift workers. A hot noon meal was prepared in the dining hall and transported to the upper site for topside shift workers.

Apart from the cantonment area were two housing areas. A seven-unit housing area was provided for officers and senior NCOs. A separate twenty unit housing area was provided for lower-ranking NCOs and airmen.

A separate upper GATR radio site was built on Red Mountain in 1960 to house the radio equipment for directing aircraft intercepts. The contract cost of the GATR Site was $256,166 for a 26 by 113-foot masonry block building and 1.5 miles of an access road. The GATR site was about three miles from the main upper site.

Lewistown AFS Lower Site Structures (edit list)
Number Building Exists Notes
1* Maiden School Yes USAF Built, Operated by Lewistown SD with three teachers
2* Gate House Yes
3* Motor Pool Yes
4* Vehicle Storage/Maint Yes
5* HQ/Orderly Room/Mail Room Yes Bldg 307
6* Rec Bldg & NCO Club Yes
7* BOQ/VOQ/Dental Clinic/
Library/AP/Ed. Office
Yes
8* Dining Hall Yes
9* Barracks #1 Foundation only
10* Barracks #2/Supply Foundation only
11* Heating Blant Yes
12* Comissary/Exchange  ??
13* Auto Hobby Shop  ??
201-213 Officer/Senior NCO Housing 1 unit 7 Units built
215-251 NCO & Amn Housing 4 Units 20 Units built

* Not the actual building numbers but reference numbers to the plan.

Lewistown AFS Major Equipment List
Search Radar HF Radar Data Systems Comm
Unit Designations
  • 694th Aircraft Control & Warning (AC&W) Squadron (1958-1961)
  • 694th Radar Squadron (SAGE) (1961-1971)
694th Assignments
Lewistown Air Force Station Partial Commanders List (edit list)
Assumed Relieved Rank Name Cullum Notes
1959-10 1961-10 Major Grewe, Glenroy N/A
1961-10 Major Mael, Francis B. N/A
1968 1969 Major/Ltc Bevan, Kenneth W. N/A
1971~ Captain Stagg, Frank N/A

Current Status

Private property. Many buildings remain in the cantonment area and just a few in the family housing area. The upper radar/operations site and the GATR radio site buildings have been mostly demolished. The upper site now serves as a communications site.

The cantonment area and the housing areas were used for a time as the campus of the Big Sky Bible College. Satellite views of the lower site show many of the cantonment area buildings still existing although both barracks are demolished with only the foundations showing. A few homes remain in the large housing area while only one remains in the smaller housing area. The school building appears intact.

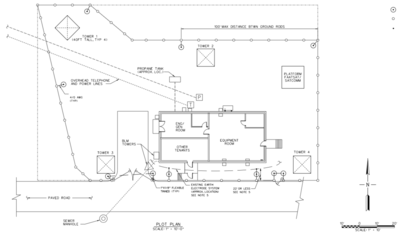

Plan of the FAA Remote Communication Air/Ground (RCAG) Building.

Two buildings remain on the main upper site that was in use during the operational period, one building was used as the Telco/microwave terminal and still furnishes those services. The other building was located alongside the operations building and now is within a small fenced-in compound with air-ground radio antennas surrounding it. This is the FAA Remote Communications Air/Ground (RCAG) facility with an FAA ID of QLJ. The Operations building and the three radar towers are completely demolished. The GATR site on Red Mountain has also been demolished.


Location: Cantonment and housing areas on Maiden Road
in Fergus County, Montana, 17 Miles from Lewistown.
Operations area located on Judith Peak.

Maps & Images

Lat: 47.2176589 Long: -109.2218471

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation:
    • Lower Site 1,958'
    • Upper Site Judith Peak 6,428'
    • GATR Site Red Mountain 6,151'




GPS Locations:

See Also:

Sources:

  • Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf, page 132.
  • Cornett, Lloyd H. & Johnson, Mildred W., A Handbook of Aerospace Defense Organization (1946-1980), Office of History ADC, Peterson AFB, Colorado, 31 Dec 1980, 179 pages, Pdf, page 161.
  • USGS Geographic Names Information System (GNIS) Database Entry: 2087778


Links:

Fortification ID:

  • MT0116 - Lewistown Air Force Station

Visited: 15 Jul 2019
