GRC-171 Transceiver Radio Set - A Medium Range UHF AM Transceiver Radio set built by Collins Radio Group/ Rockwell International, Cedar Rapids, Iowa. Used in ground radar stations for ground-air communications. Part of USAF Rivet Switch program in the 1970s to replace the aging vacuum tube technology radios with solid-state equipment.
|
|
|
 GRC-171 Transceiver Radio |
GRC-171 Transceiver Radio
GRC-171 Transceiver Radio
| Element
|
Value
|
Notes
|
| Nomenclature |
GRC-171 |
|
| Variants |
- GRC-171(V)1. UHF AM transceiver.
- GRC-171(V)2 UHF AM/FM transceiver.
- GRC-171A(V)1 UHF AM transceiver.
- GRC-171A(V)2 UHF AM/FM transceiver.
- GRC-171A(V)4 UHF AM/FM transceiver. (compatible with Have Quick I).
- GRC-171B(V)4 UHF AM/FM transceiver. (Have Quick I/II).
- GRC-171C(V)4 UHF AM/FM transceiver. (Have Quick I only).
- GRC-171D(V)4 UHF AM/FM transceiver. Configured for non-ECCM operation only
|
|
| Manufacturer |
Collins Radio Group/ Rockwell International, Cedar Rapids, Iowa |
|
| Type |
UHF AM Radio Transceiver |
|
| IEEE Band |
UHF |
|
| Frequency |
225-399.975 MHz |
|
| Channels |
7,000 @ 25 kHz spacing |
|
| Channel Spacing |
25 kHz |
|
| Technology |
All solid state |
|
| Power Output |
20-watt AM carrier |
|
| Input Power |
95 to 132 V ac; 189 to 264 V ac; 47 to 63 Hz; 380 to 420 Hz; single-phase. |
|
| Introduced |
1973 |
|
| Production |
10,752 est |
|
| Final Cost |
$100,000 est each |
with all support equip
|

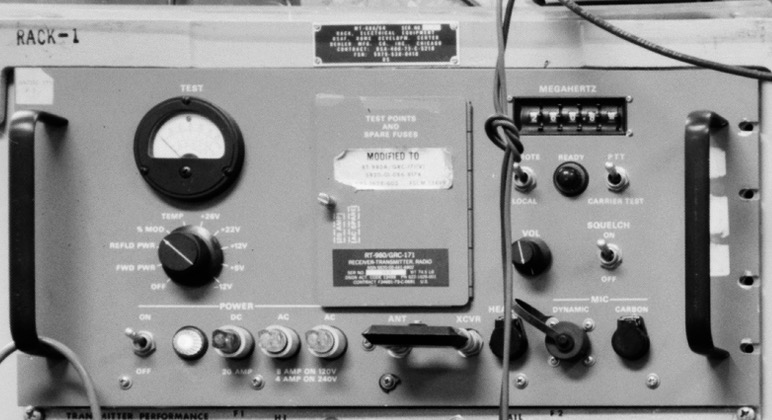

 Rivet Switch Radio Racks at Mill Valley AFS 1978. GRC-171 Transceiver in the upper left.  C-7999/GRC-171 Remote Control.
GRC-171 Components (edit list)
| Component
|
Model
|
Quantity
|
Height
|
Width
|
Deep
|
Weight
|
Notes
|
| Radio Set Control
|
C-7999/GRC- 171
|
1
|
2.62 in
|
3.25 in
|
4.5 in
|
0.69 lb
|
|
| Radio Receiver-Transmitter
|
RT980/GRC-171
|
1
|
8.72 in
|
19.00 in
|
19.20 in
|
74.5 lb
|
|
See Also:
Sources:
- Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf
- T.O. 31R2-2GRC171-2 Service And Circuit Diagrams Radio Set AN/GRC-171 pdf
