Fort Rodd Hill Lower Battery

From FortWiki
Jump to: navigation, search

Fort Rodd Hill Lower Battery (1895-1942) - Fort Rodd Hill Lower Battery was a reinforced concrete six inch coastal gun battery on Fort Rodd Hill in Victoria, Vancouver Island, British Columbia, Canada. Battery construction started 6 Sep 1895, was completed and transferred for use 31 Mar 1898 at a cost of £4419. Deactivated in 1942.

Lower Battery Gun Emplacement
Lower Battery Magazine
Fort Rodd Hill Lower Battery

Endicott Period (1890-1910)

Part of the Harbor Defense of Victoria and Esquimalt Harbors.

The Lower Battery was built between 1895 and 1898 for two 6" Mark VI breechloading guns and two Mark IV disappearing carriages. The battery included a compound that had a land side defensive outer wall and a casemate barracks that housed the gun crews for both the Upper and Lower Gun Batteries.

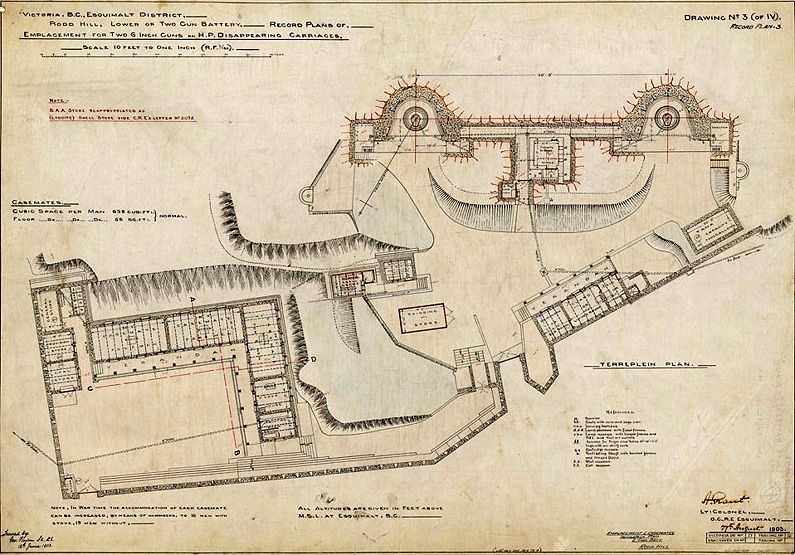

Fort Rodd Hill Lower Battery Plan 1903

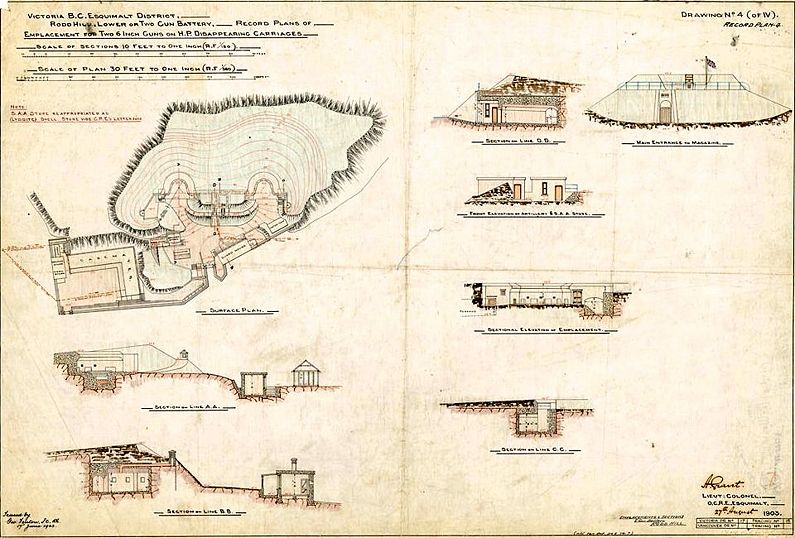

Fort Rodd Hill Lower Battery Plan & Elevations 1903


Current Status

Must See! Part of Fort Rodd Hill National Historic Site of Canada in Victoria, Vancouver Island, British Columbia, Canada. Displays include furnished barracks rooms, a guardhouse, magazine and a smoothbore cannon lifting gin. One cannon on display. The gun emplacements do not have guns or carriages mounted but the roller races remain.


Location: Fort Rodd Hill in Victoria, Vancouver Island, British Columbia, Canada.

Maps & Images

Lat: 48.432027 Long: -123.450472

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: .....'

Sources:

  • Morgan, David, Forts of the Canadian West Coast - Victoria/Esquimalt Defenses, CDSG Journal, Volume 9, Issue 2, May 1995, page 16-24.

Links:

Visited: 22 Jun 2009

Fort Rodd Hill Lower Battery Picture Gallery

Click on the picture to see a larger version. Contribute additional pictures - the more the better!
