FPS-8

FPS-8 Medium Range Search Radar Set - A medium range air transportable Search Radar set built by General Electric. Some 200 units were produced between 1954 and 1958.

•

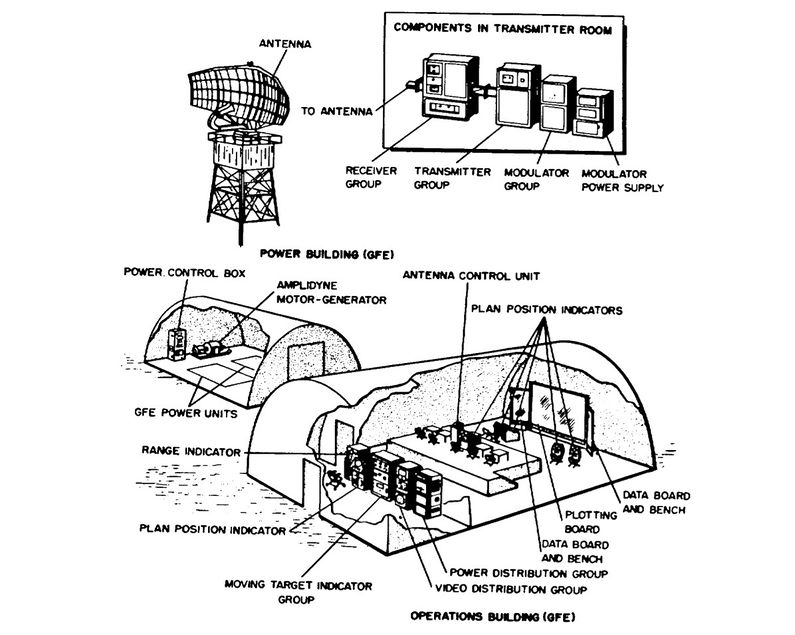

  FPS-8 Search Radar System.

FPS-8 Search Radar

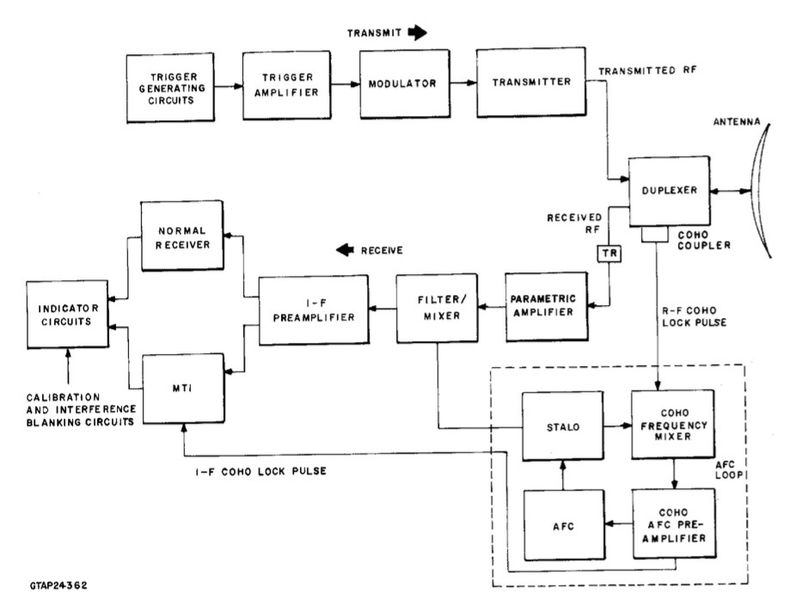

FPS-8 Search Radar Element Value Notes Nomenclature FPS-8 Origins Variants GPS-3, MPS-11, FPS-88 Manufacturer General Electric Type Search Number Made 200+ IEEE Band L Band Frequency 1280-1350 MHz PRF 360 pps Pulse Width 2 us Peak Power Output 1 Megawatt Rotation Speed 0-10 rpm RF Power Source QK-358 Magnetron Tuneable Range 160 nmi 200 nmi with delay Medium Range Accuracy .5 mi Range .5 deg Azimuth Altitude 40 k feet Power Requirements 129/208 Volts, 3 Phase, 4 wire, 60 Cycle, 20 Kw Indicators 12" PPI, 5" A-Scope Introduced circa 1954 FPS-8/MPS-11/GPS-3 Antenna on Fixed Tower FPS-8/MPS-11 Search Radar Block Diagram. FPS-8 Components (edit list) Component Model Quantity Height Width Deep Weight Notes Antenna Group OA-405/FPS-8 1 200 300 72 2,429 Receiver Group OA-417/FPS-8 1 50-1/2 33-1/8 27 540 Transmitter Group OA-413/FPS-8 1 57-9/16 32 24 578 Modulator Group OA-414/FPS-8 1 55-1/3 24 24-1/4 578 Power Supply Group OA-412/FPS-8 1 54 30 28 1,160 Switching Group Electrical Power OA-415/FPS-8 1 61-1/2 25 32 760 Radar Set Group OA-381/FPS-8 1 40-3/4 33-3/8 26-5/8 150 Radar Set Group OA-416/FPS-8 1 63-9/16 24 29 570 Control, Antenna C-1133/FPS-8 1 30 15 15 Indicator, Range IP-209/FPS-8 1 21 28-11/16 15 150 Indicator Group OA-99A/CPS 2 to 6 42 21 43 419 PPI Scope Radome-Tower Group AN/GPA-89 1 Context See Also: MPS-11 US Radar Sets Sources: Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf MIL-HDBK-162A, 15 Dec 1965. Links: Bad Links /museum/equip/fps-8.html FPS-8] Radar Equipment Related: Bad Links, Benton Air Force Station, Bethel Air Force Station, Brunswick Air Force Station, Bucks Harbor Air Force Station, Campion Air Force Station, Cape Charles Air Force Station, Caswell Air Force Station, Cherry Point MCAS Radar Site, Ellington Air Force Base Radar Site, Finley Air Force Station, Fire Island Air Force Station, Flintstone Air Force Station, GPS-3, Highlands Air Force Station, Jacksonville NAS Radar Site, Joelton Air Force Station, Kotzebue Air Force Station, MPS-11, Middleton Island Air Force Station, Mill Valley Air Force Station, Montauk Air Force Station, Mount Laguna Air Force Station, Murphy Dome Air Force Station, Naselle Air Force Station, North Bend Air Force Station, North Truro Air Force Station, Oakdale Air Force Station, Point Arena Air Force Station, San Clemente Air Force Station, TPS-1D, US Radar Sets, Unalakleet Air Force Station, Walnut Ridge Air Force Station, Willmar Air Force Station, Winslow Air Force Station, Winston-Salem Air Force Station,
