Battery AMTB 951 (1943-1946) - Battery AMTB 951 was a reinforced concrete World War II AMTB rapid fire 90mm gun battery near Pulpit Rock, Rockingham County, New Hampshire. This battery was serviced from Fort Dearborn (4). Battery construction started in 1943, was completed in 1943 and transferred to the Coast Artillery for use in 1943. Deactivated in 1946.

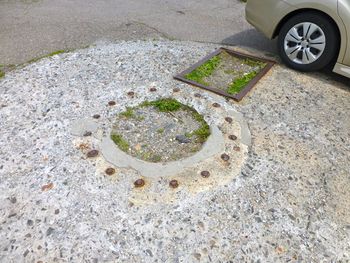

Battery AMTB-951 Emplacement Remains

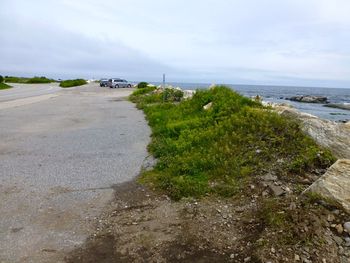

Battery AMTB-951 Locale at Pulpit Rock

World War II

Part of the Harbor Defense of Portsmouth, New Hampshire.

The AMTB battery at Pulpit Rock site consisted of two 90mm guns mounted on 90mm M3 fixed gun mounts and two 90mm guns mounted on 90mm M1A1 mobile gun mounts. Concrete pads were provided for both fixed guns and often wooden gun platforms were provided for the mobile guns. Two earth covered concrete magazines provided protection for the ammunition. Electric power was provided by M-7 portable generators.

The battery had a dual mission of defense against fast enemy motor torpedo boats and enemy aircraft. The effective range of the guns was about 8,000 yards or 4.5 miles. Each weapon required a crew of 15, 9 men in the gun squad and 6 men in the ammunition squad.


AMTB Front View
AMTB Interior View
AMTB Side View
AMTB Back View

The above photos were taken at Fort Monroe, Battery Parrott

From FM 4-91: "This weapon consists of the 90-mm gun M1 and top carriage M1A1 on the 90-mm gun mount M3. The mount M3 is of the turret type, the shielding being constructed of boiler plates. This boiler plate shield provide fragmentation protection only. No shielding is provided at the rear due to the requirements for service of the piece. A sighting port in the shielding in front permits sighting in direction by the gun pointer."

References:

  • FM 4-91 - 90-MM Gun, Fixed Mount Service of the Piece
  • FM 4-126 - Antiaircraft Artillery, Service of the Piece, 90-mm Antiaircraft Gun
  • TM 9-373 - 90-mm Gun M1 and 90-mm Gun Mount T3 (M3)

Current Status

In Pulpit Rock parking Lot. No period gun or mounts in place.


Location: Pulpit Rock, Rockingham County, New Hampshire

Maps & Images

Lat: 43.032529 Long: -70.718973

Sources:

  • U.S.Army, Supplement to the Harbor Defense Project, Harbor Defenses of Portsmouth, New Hampshire, (CCA-P-PCC), 1945, CDSG

Links:

Visited: 7 Jun 2012

Battery AMTB 951 Picture Gallery

Click on the picture to see a larger version. Contribute additional pictures - the more the better!
